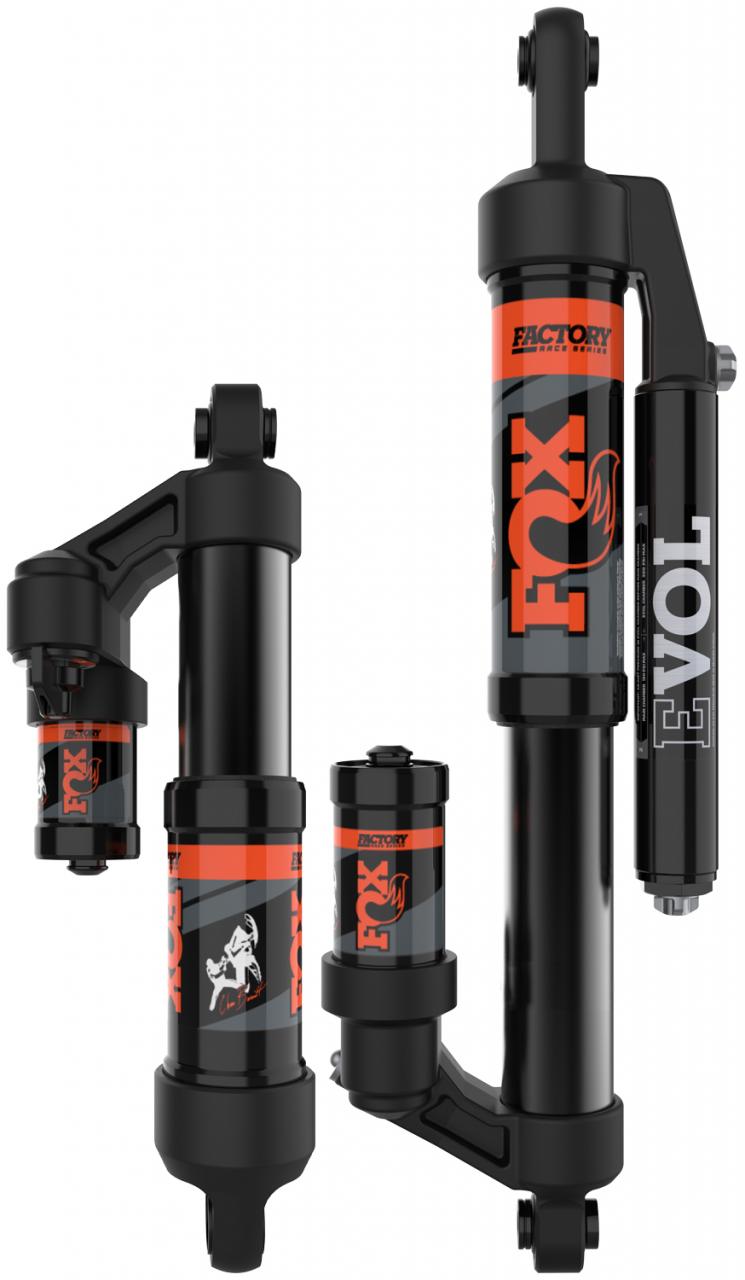

FOX Telaston iskart: Float 3 QS3 LW/EVOL QSL-QSR LW PRO-RMK Matryx (Burandt)

Adjustments:

FLOAT air spring (front and rear track)

EVOL air chamber (rear track)

QS3–3 position compression (front track), with lockout mode (rear track)

QSR–3 position rebound (front track)

Features:

Burandt specific calibration

Optimized lightweight shock design

Spiral groove bypass

One-piece, aluminum spherical bearings

High-flow velocity-sensitive damping

Fully re-buildable and re-valvable

Air Spring Pressures:

Front Track Main – 25psi

Rear Track Main – 155psi

EVOL – 170psi

Top Mount: Eyelet

Bottom Mount: Eyelet

Rebuild P/n: FT 803-01-572; RT 803-01-574

Reservoir: Piggyback

Replaces Part Number: 853-21-006

Front Track Extended Length: 11.4500

Front Track Compressed Length: 8.1900

Front Track Travel: 5.5700

Rear Track Extended Length: 11.4500

Rear Track Compressed Length: 10.9400

Rear Track Travel: 5.5700

Fitment notes: Track (Front & Rear)
